Reliable Clean Energy for Offgrid Remote Applications
Power generators to supply electricity in remote regions based on solid oxide fuel cells (SOFCs):
h2e PowerBox
h2e PowerBox - Technical Data
24 x7 clean, green, reliable & affordable off-grid power supply for critical applications where the grid is either unavailable or is unstable.
Specifications
| Parameter | Specifications |
|---|---|
| Continuous Power Output | 1 kWe – 4.2KWe |
| Operating Range | 0.3 kWe to 3 kWe SOFC-battery-Solar PV hybrid system |
| SOFC Rated output | 1.2 KW |
| Solar PV Rated output | 2 KWp |
| ZEBRA Battery Rated capacity | 24V 120 Ah (2.8KWh) |
| Operation Mode | Fully Automatic |
| Electrical Connection | 230 VAC@50Hz, 1 ø or 3 ø |
| Parameter | Specifications |
|---|---|
| Nominal Power Output | 20 to 30 kWh/day |
| Usable Heat Output | 23 to 35 kWh/day |
| Electrical Efficiency (Gross) | Fuel cell - 45% PV- 16% Battery- 90% (conversion) |
| Combined (CHP) Efficiency | > 85% |
| Operational Lifetime | 15 years with 3 maintenance cycles |
| Parameter | Specifications |
|---|---|
| Standard Temperature | -20°C to 49°C |
| Humidity | 10% to 90% |
| Altitude | 0 to 4500 m above sea level |
| Location | Indoor/Outdoor |

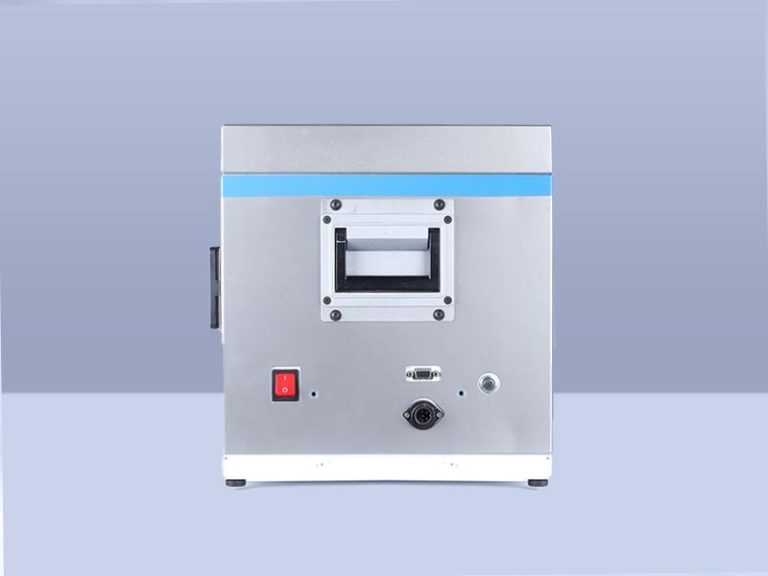

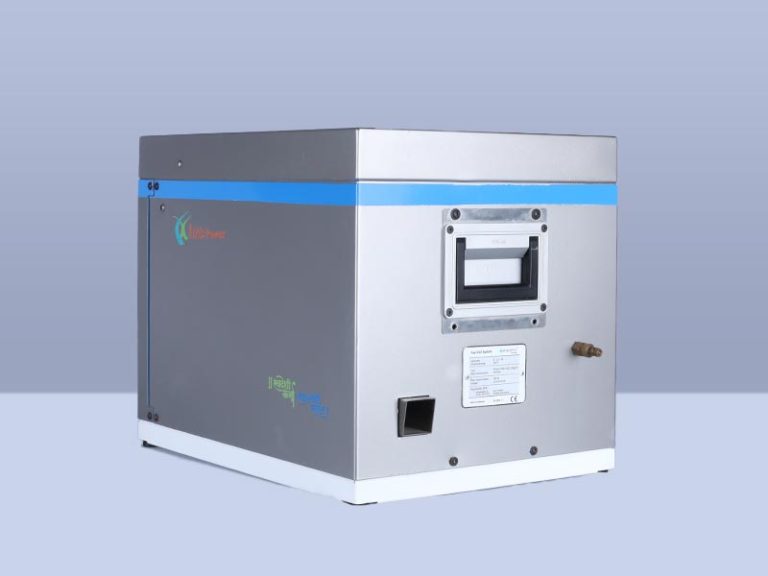

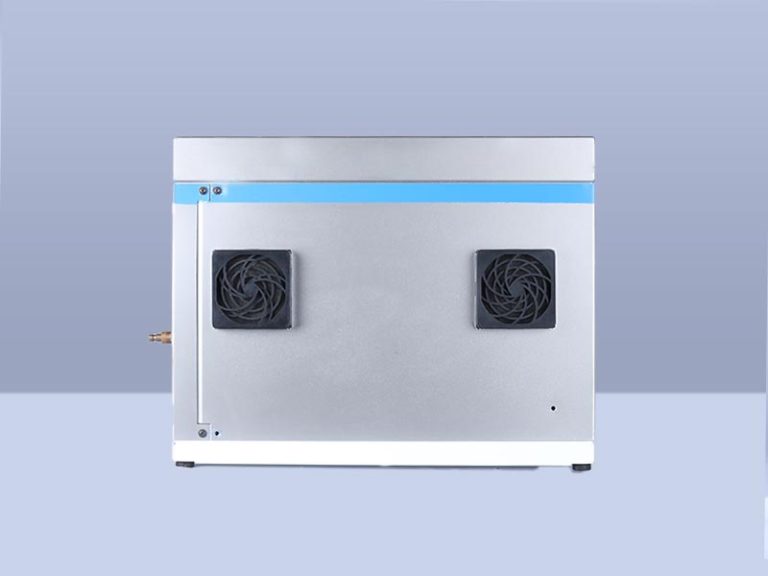

h2e Mini
h2e Mini - Technical Data
24 x7 clean, green, reliable & affordable off-grid power supply for critical applications where the grid is either unavailable or is unstable.
Specifications
| Parameter | Specifications |
|---|---|
| Continuous Power Output | 250 We |
| Operating Range | 0.1 kW to 0.25 kWe |
| Technology | SOFC battery-hybrid system |
| Operation Mode | Fully automatic |
| Electrical Connection(O/P) | 24V DC, 10 A |
| Fuel | CNG/ LPG |
| Fuel Requirement | 70 g/h (Full Load) |
| Fuel Input Pressure | 20 to 50 mbar |
| Parameter | Specifications |
|---|---|
| Weight | 25 kg (approx.) |
| Size [W X D X H] | 1.6 ft.X 1.4 ft.X 1.25 ft. (approx.) |
| Parameter | Specifications |
|---|---|
| Standard Temperature | 0 to 49 ◦C |
| Humidity | 10% to 90% |
| Altitude | 0 to 3000 m above sea level |
| Location | Indoor/Outdoor |
| IP Category | IP 51 |
Applications
The h2e PowerBox is an affordable solution for off-grid power supply for critical applications.
Core Advantages
Continuous power supply (24/7)
Average load range 1.2kW to 4.2 KW DC,
with optional heat utilisation
Fuel flexibility
Natural gas, LPG or
Propane (Biogas, Methanol, Diesel)*
Hybrid system
The combination of Fuel Cell, Solar PV & battery ensures uniform Power Quality, Low maintenance & very low operational cost
The Levelized Cost of ownership
is cheaper than any available solutions and reduced emissions
Proven technology
The SOFC Fuel Cells and SALT batteries being used in the PowerBox are commercially proven technologies
Features
Multi-Fuel capability allows to utilise the fuel depending on the geography and availability
The systems will be solar – battery – SOFC hybrid solution driven by a smart energy management
system to maximise efficiency and offer best possible Total Cost of Ownership.
Various voltage levels available: e.g. 120/230/240/400 VAC or 48/60 VDC
Sensors and safety systems: e.g sensors for CO, combustible gases and smoke according to local requirements
Communication: satellite, 4G or landline connection, remote control via VPN
Modular configuration gives flexibility for additional Solar and SOFC capacity
System built on a Robust Platform with life upto 20 years
